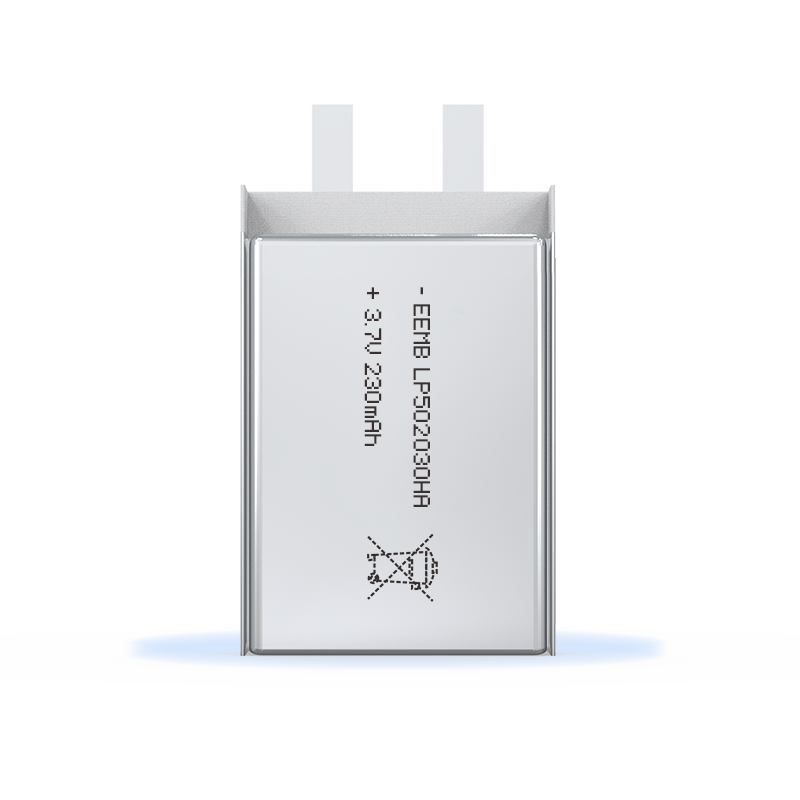

LP502030HA-High Power Type Lithium Polymer Battery 10C
Rechargeable Lithium Polymer Battery Cell 10C High Discharge Rate Type 502030HA 3.7V 230mAh 10C Li-ion Polymer Battery High Discharge Rate Type
| Model: | LP502030HA |
| Chemistry: | Lithium Polymer |
| Description: | Rechargeable (Secondary) Lithium Polymer Battery Cell 3.7V 230mAh 10C High Discharge Rate Type size 502030 Lipo Lithium ion Battery Bare Cell with Solder Tab |
Customizing Battery to Your Specification
Product Detail
| Product Categories | Bare Cell |
|---|---|
| Location | China |
| ASIN | |
| Battery Model | LP502030HA |
| Battery Chemistry | Lithium Polymer |
| Series / Type | LP Lithium Polymer-High Power |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 230 mAh |
| Rechargeable/Non-Rechargeable | Rechargeable (Secondary) |
|---|---|
| Temperature Range | -20℃ ~ +60℃ |
| Battery cell size | 502030 |
| Dimension | 0.81" W x 1.26" L x 0.21" H(20.5mm X 32.00mm X 5.30mm) |
| Weight (g) | 4.6 g |
| Termination Style | Solder Tab |
| Compliance | UN38.3 |
Other Information
Li-polymer battery LP502030HA
Nominal Voltage: 3.7V
10C High Discharge Type Rate
Typical capacity: 230mAh
Min capacity: 200mAh
Weight: approximate 4.60 g
Size: 20.5mm X 32.00mm X 5.30mm (WxLxH)
SUITABLE for Bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi enabled smart home systems, PDA and digital cameras, GPS, monitoring units, e-books, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse monitors.
