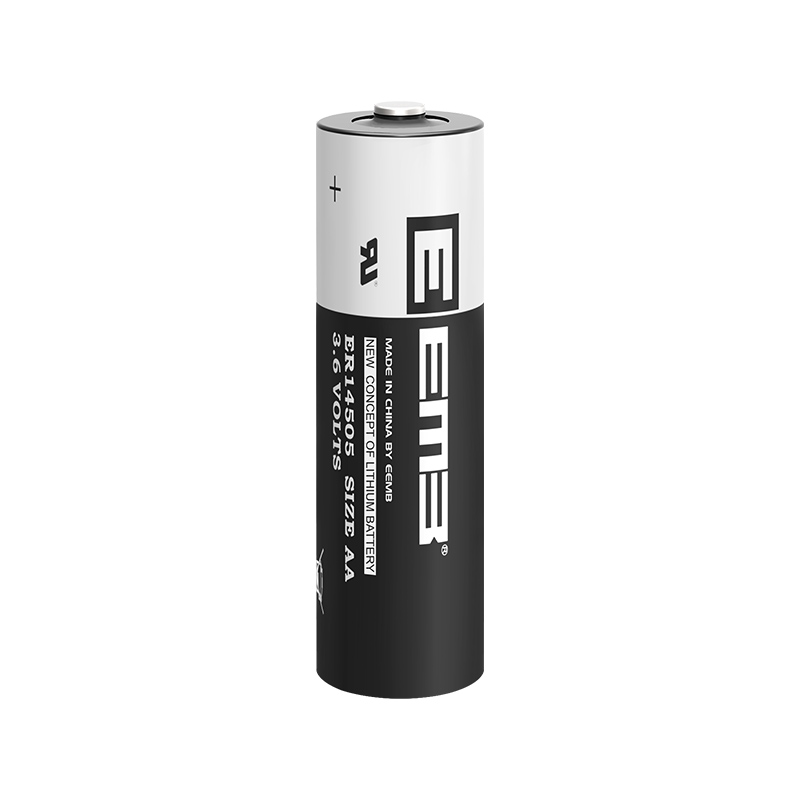

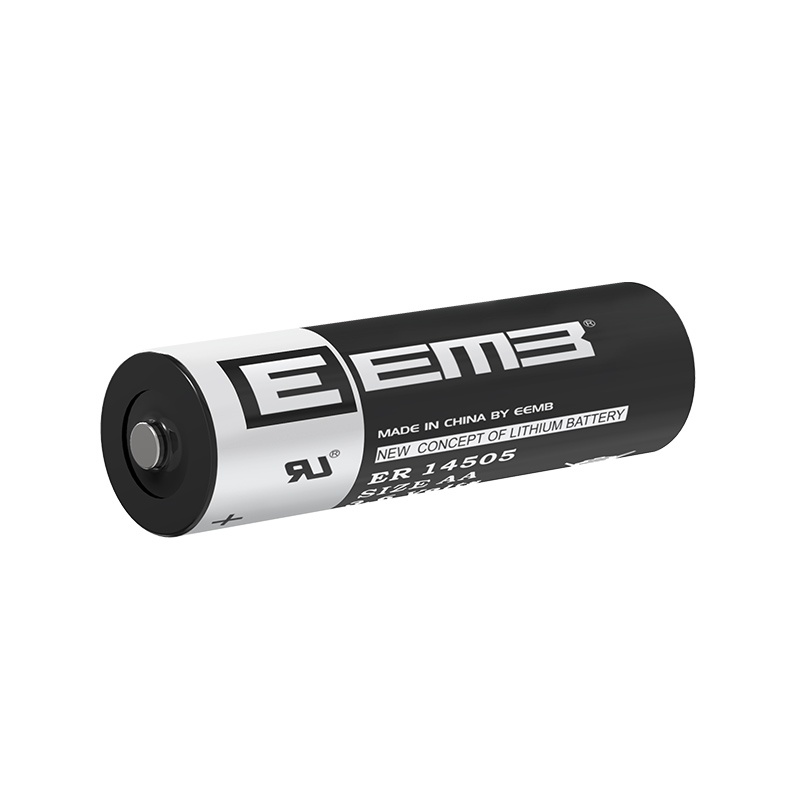

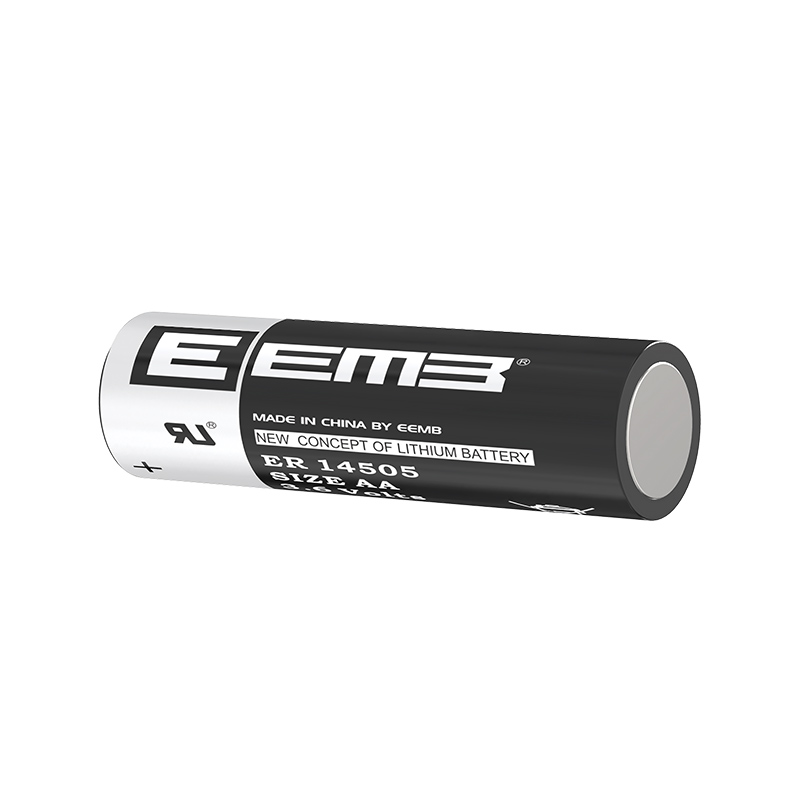

ER14505-Bobbin Type Lithium Thionyl Chloride Battery
| Model: | ER14505 |
| Chemistry: | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Description: | Cylindrical Cell AA size Bobbin Type Li-SoCl2 Lithium Thionyl Chloride 3.6V Battery ER14505 Non-rechargeable (Primary) 2600 mAh |
Customizing Battery to Your Specification
Product Detail
| Product Categories | Bare Cell |
|---|---|
| Location | China,Europe,USA |
| ASIN | B08F1NBZ2M |
| Battery Model | ER14505 |
| Battery Chemistry | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Series / Type | ER Li-SoCl2-Energy Bobbin |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 2600 mAh |
| Rechargeable/Non-Rechargeable | Non-Rechargeable (Primary) |
|---|---|
| Temperature Range | |
| Battery cell size | AA |
| Dimension | 0.55" Dia x 1.99 " H (14.5mm x 50.5mm) |
| Weight (g) | 19 g |
| Termination Style | Button Top (extending) |
| Compliance | UL1642 / UN38.3 |
Other Information
[Value]:
Lithium Thionyl Chloride (Li-SOCl2) Bobbin Type ,
Model:ER14505;
Rated voltage : 3.6V,
Cell size: AA,
Cell dimensions: Ø14.5x50.5mm,
Capacity: 2600 mAh,
Battery features: non-rechargeable,
Maximum Continuous current: 50mA,
[Replaces]:
XL-060F, TL-2100, TL-4903, TL-5104, TL-5903; LS-14500, LS-14500C; SL-360, SL-760; ER6V, ER6LV; ER6, ER6C
[Compatible]:
Ideal for Alarm System/PLC Memory Backup Power/CNC System/Servo Motors/Machine Tools/Instruments/Special Electronic Equipment/Intrusion Sensors/Invisible Fencing/Smart Utility Metering/Emergency Backup/Gas/Water/Electric Meter/Toll RFID/IoT/Movemet Sensor Monitor/Home Security System/Alarm System/PLC/Fleet Monitoring/Data Collection./.AMR Add-ons/Smoke Alarms/Telematic Devices/Medical Devices
