Li-MnO2 Cylindrical Spiral High Power Type Battery
3.0 Volt - Primary / Non-Rechargeable Battery
- Cylindrical Battery in Spiral Structure Improved for High Current Output Capability
Main Features
- Battery Chemistry : Lithium/Manganese Dioxide (LiMnO2) Battery ;
- Non-Rechargeable Cell
- Spiral wound construction primary lithium cylindrical battery, in 1/2AA to D size
- Deliver high voltage (3V)
- Wide working temperature range : -40 to +85°C
- High specific energy density
- Low internal resistance
- Low self-discharge rate ( (less than 2% after 1 year of storage at room temperature)
- Long-term reliability with a life span unto 10 years
- Stable discharge characteristics, stable voltage output throughout discharge cycles
- Applied in a broad range of applications requiring high-current pulse
*Battery performance will vary depending on conditions such as power consumption, usage pattern, voltage limitation, and environmental temperature.
Main Applications
- Safety and Security Systems
- Alarm Systems
- Sensors
- Detectors
- Internet of Things (IoT) devices
- Utility Meters
- AMR and AMI
- Communication Devices (e.g. 3G, LTE, LPWA)
- Asset Tracking
- Beacons and emergency location transmitters
For different applications, battery cells can be assembled with various types of battery terminations pins, such as PC pins, SMD mounts, connected with cable and connectors, and custom design battery pack according to customers’ design configurations.
| Model | Size | Weight | Voltage | Capacity | Action | |
|---|---|---|---|---|---|---|
|
CR14250SL |
1/2AA | 10 g | 3.0 V | 600 mAh | |
|
CR14335SL |
2/3AA | 14 g | 3.0 V | 900 mAh | |
|
CR14505SL |
AA | 21 g | 3.0 V | 1500 mAh | |
|
CR17335SL |
2/3A | 20 g | 3.0 V | 1500 mAh | |
|
CR17450SL |
17450 | 24 g | 3.0 V | 2200 mAh | |
|
CR17505SL |
A | 30 g | 3.0 V | 2500 mAh | |
|
CR18505SL |
18505 | 35 g | 3.0 V | 2800 mAh | |
|
CR26500SL |
C | 62 g | 3.0 V | 5000 mAh | |
|
CR34615SL |
D | 125 g | 3.0 V | 12000 mAh | |
|

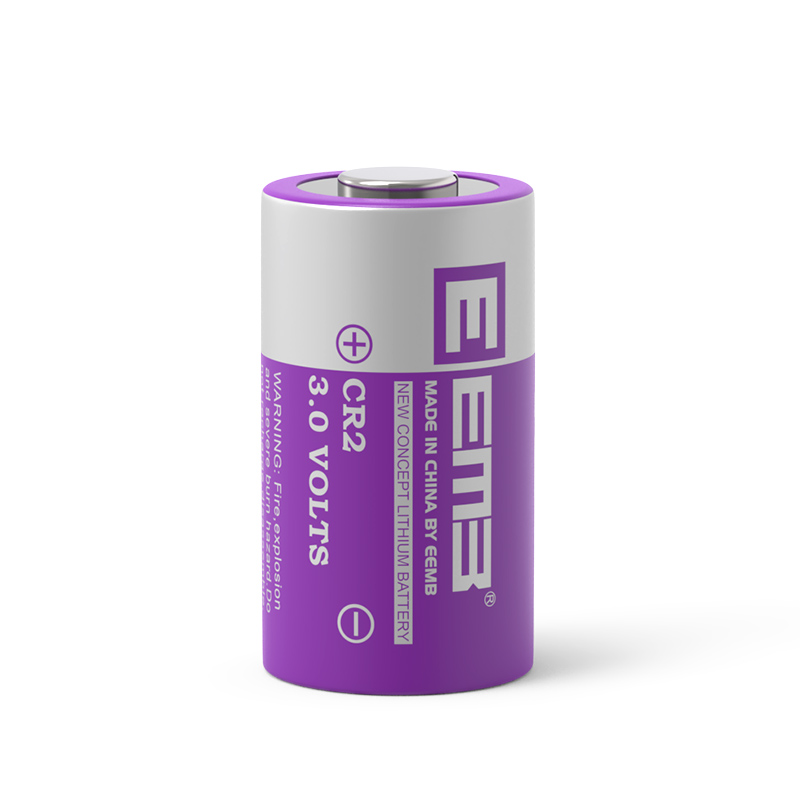

CR2 |
1528 | 11 g | 3.0 V | 850 mAh | |
|

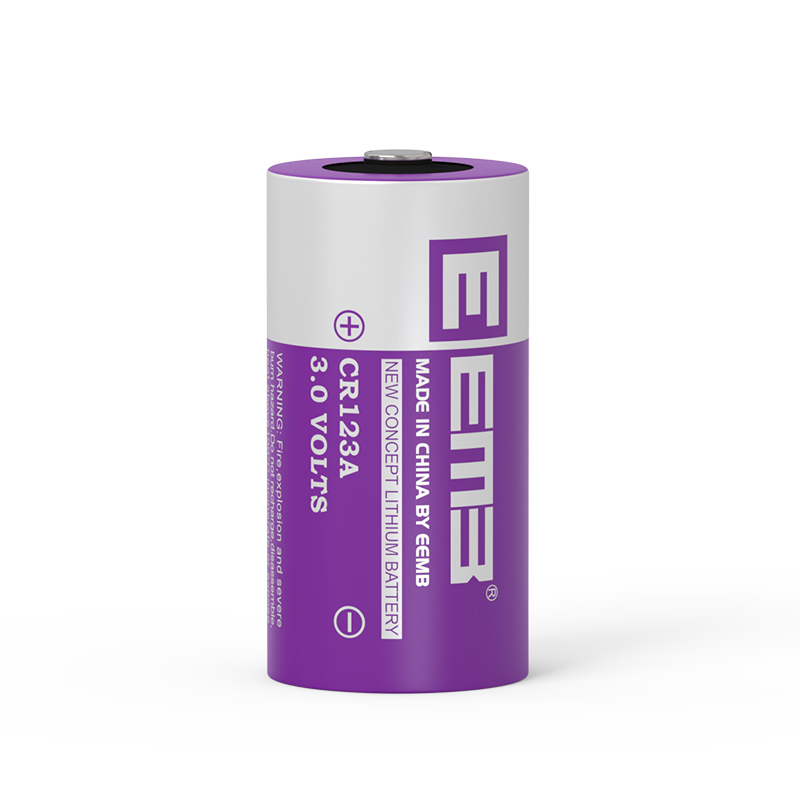

CR123A |
2/3A | 16 g | 3.0 V | 1500 mAh | |
|
|

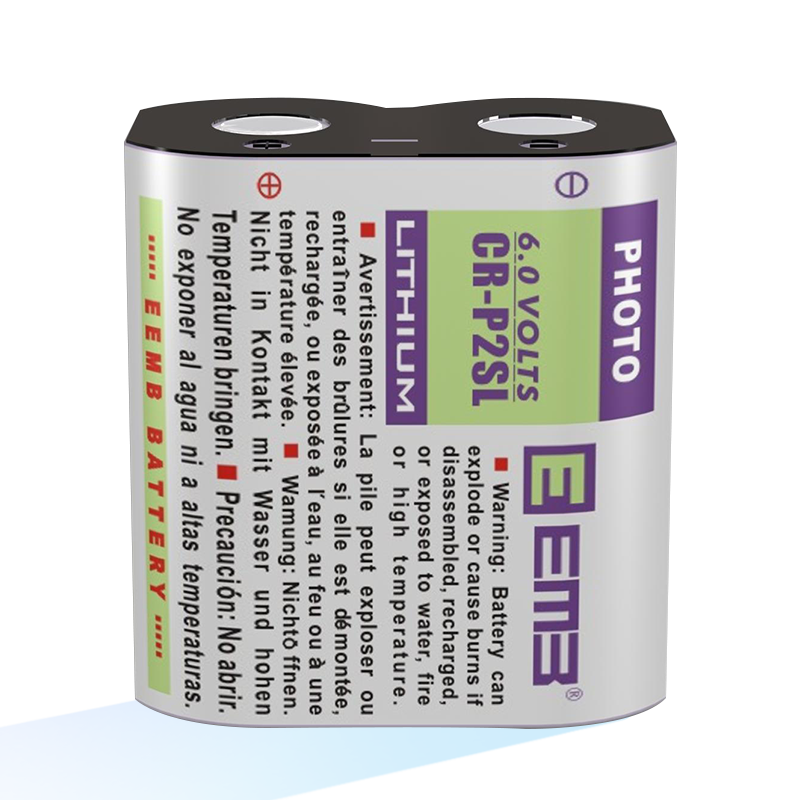

CR-P2 |
/ | 42 g | 6.0 V | 1500 mAh |
EEMB Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
EEMB Battery Quality Control & Compliance
Check EEMB manufacturing site and product compliance.
Safety Handling and Product Design with EEMB Lithium Battery
Handling Lithium Battery Safely
Custom Design Battery Cells & Packs
EEMB Battery is an ONE STOP green and safe power solution provider, specialized in battery cell manufacturing, battery pack's R&D and assembly, and marketing of Li-MnO2, Li-SoCL2, Li-FePO4, Lithium Polymer, Li-ion, 18650, 14500, 26650 batteries
